JSX314050FUR
11000*2500*3950 mm(L*W*H)
50Tons

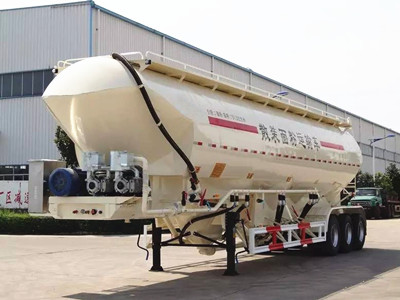

Tri Axles Vertical Flour Semi-Trailer Tanker Flour Transport Tank Truck Tractor Trailer
Vertical powder tank semi trailer mainly used for the transport of solid powder particles with poor fluidization properties, peculiar density and granularity. Such as: carbon black, soda ash, flour, PTA, PA66, feed, quartz sand etc. This series tank trailer have advantages of outstanding appearance, reasonable structure design, low unloading remaining rate and light weight etc.
| Main Parameter of Tri Axles Vertical flour semi-trailer tanker/flour transport tank truck tractor trailer | |||
| Overall size | 11000*2500*3950 mm(L*W*H) | Landing gear | JOST brand, 28 ton |
| Capacity | 40CBM | Tire | 11.00R20, 12 units |
| Payload | 50000kg | Rim | 8.00-20, 12 units |
| Axle | 13tons Fuwa or BPW brand, 3units | Diesel engine | Weichai 4102 |
| Suspension | Air suspension | Air compressor | 14m³ |
| King pin | 2", bolt on type | ABS | Optional |
| Braking system | 30/30 double brake chambers on rear axle, 30 single chambers on other axles | Painting | Blasting sand before painting, one coat primer and two coat finish painting |
| Electrical system | Dual circuit, 7-way split pin receptacle plug, LED light | Accessories | One standard tool box |
Kindly note:
Above parameter is just for your reference, we can customize different kinds of tank trailer as per your request.
1)Tank body material generally adopt carbon steel or stainless steel, also the whole vehicle can be made of aluminum alloy, equipped with air suspension. To meet the lightweight requirement.
2)Tank body is composed of a straight silo and several inverted cones, the production process is complex, Between cone and upper straight body adopt arc tangent transition.Eliminate dead angle exist in the tank, Effectively prevent the material from hanging on wall and accumulation phenomenon.
3)It can pneumatically discharge material, also adopt gravity discharge to material. Smaller fluidized bed area, material remaining is very low. It is suitable for transporting food materials and some high-end chemical materials.
4)About the multi-compartment structure of vertical powder tank trailer, It has the function of transport different kinds of materials in sub-compartment to meet client’s diversity choices. The upper suction type discharge structure can meet the maximum requirement of tank volume, it is easy for workers to operate, and provide great convenience for pipeline maintenance in the later period.
| After-sales service: Tank semi trailers with reasonable structure,reliable performance,beautiful appearance and simple operation, adopts computer 3D aided design,Use high quality high strength steel produce,welded by automatic submerged-arc processes. All our spare parts(original, OEM and replacement) for different types tank semi trailers with better price and nice quality to ensure customers' trucks and semi trailers being in good working conditions. |
| Customize Service: As a professional tank semi trailer manufacturer for many years, we can customize different kinds of tank trailer as per your requirement. Payload from 20ton up to 100 ton to meet different road transportation demand,We will try our best to supply you an innovative and efficient transport solution with super quality and competitive price. Expect our cooperation. |
Tri Axles Vertical Flour Semi-Trailer Tanker Flour Transport Tank Truck Tractor Trailer
Vertical powder tank semi trailer mainly used for the transport of solid powder particles with poor fluidization properties, peculiar density and granularity. Such as: carbon black, soda ash, flour, PTA, PA66, feed, quartz sand etc. This series tank trailer have advantages of outstanding appearance, reasonable structure design, low unloading remaining rate and light weight etc.
| Main Parameter of Tri Axles Vertical flour semi-trailer tanker/flour transport tank truck tractor trailer | |||
| Overall size | 11000*2500*3950 mm(L*W*H) | Landing gear | JOST brand, 28 ton |
| Capacity | 40CBM | Tire | 11.00R20, 12 units |
| Payload | 50000kg | Rim | 8.00-20, 12 units |
| Axle | 13tons Fuwa or BPW brand, 3units | Diesel engine | Weichai 4102 |
| Suspension | Air suspension | Air compressor | 14m³ |
| King pin | 2", bolt on type | ABS | Optional |
| Braking system | 30/30 double brake chambers on rear axle, 30 single chambers on other axles | Painting | Blasting sand before painting, one coat primer and two coat finish painting |
| Electrical system | Dual circuit, 7-way split pin receptacle plug, LED light | Accessories | One standard tool box |
Kindly note:
Above parameter is just for your reference, we can customize different kinds of tank trailer as per your request.
1)Tank body material generally adopt carbon steel or stainless steel, also the whole vehicle can be made of aluminum alloy, equipped with air suspension. To meet the lightweight requirement.
2)Tank body is composed of a straight silo and several inverted cones, the production process is complex, Between cone and upper straight body adopt arc tangent transition.Eliminate dead angle exist in the tank, Effectively prevent the material from hanging on wall and accumulation phenomenon.
3)It can pneumatically discharge material, also adopt gravity discharge to material. Smaller fluidized bed area, material remaining is very low. It is suitable for transporting food materials and some high-end chemical materials.
4)About the multi-compartment structure of vertical powder tank trailer, It has the function of transport different kinds of materials in sub-compartment to meet client’s diversity choices. The upper suction type discharge structure can meet the maximum requirement of tank volume, it is easy for workers to operate, and provide great convenience for pipeline maintenance in the later period.
| After-sales service: Tank semi trailers with reasonable structure,reliable performance,beautiful appearance and simple operation, adopts computer 3D aided design,Use high quality high strength steel produce,welded by automatic submerged-arc processes. All our spare parts(original, OEM and replacement) for different types tank semi trailers with better price and nice quality to ensure customers' trucks and semi trailers being in good working conditions. |
| Customize Service: As a professional tank semi trailer manufacturer for many years, we can customize different kinds of tank trailer as per your requirement. Payload from 20ton up to 100 ton to meet different road transportation demand,We will try our best to supply you an innovative and efficient transport solution with super quality and competitive price. Expect our cooperation. |
