T75 20' 40‘’Tank Container for Cryogenic Liquid Gas LO2 LN2 LAr LNG And LCO2 Tank Container For Sale

Share to:

T75 20' 40‘’Tank Container for Cryogenic Liquid Gas LO2 LN2 LAr LNG And LCO2 Tank Container For Sale

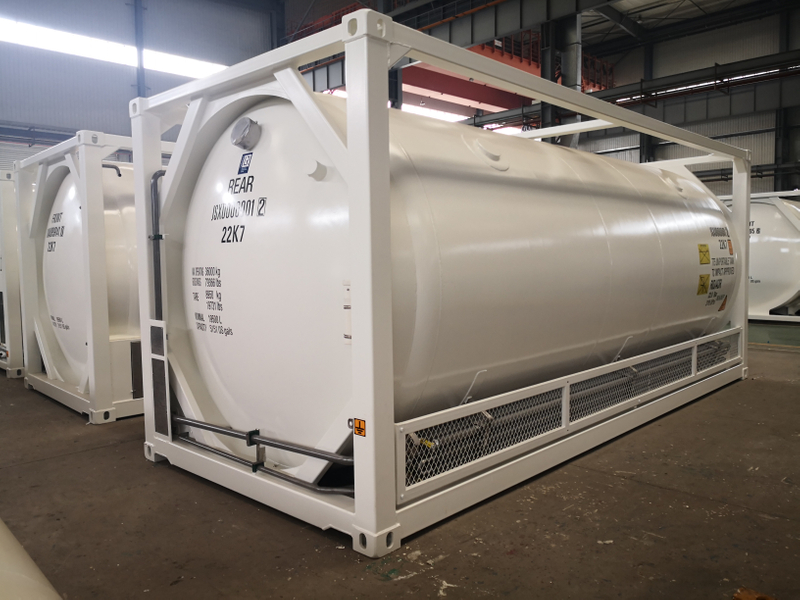

ISO Tank container is a kind of steel pressure vessel installed in the fastening external frame. Most of the tanks are made of 316 stainless steel and equipped with steam or electric heating device, inert gas protection device, pressure relief device and other optional equipment for fluid transportation and handling. European, American and Japanese laws stipulate that some goods must be transported in tank containers. As a means of Safety transportation, Tank Container has natural advantages and become more and more popular in the world.

Color:	Customized according to customer
Material:	Stainless steel
Availability:

Quantity:



Inquire Add to Basket

Model:
JSXT75
Brand:
JSXT
Code:
ISO9001
size:
6058*2438*2591
Commodity Coding:
ISO9001
Load Weight:
22568

Product Description

T75 20' 40‘Tank Container for Cryogenic Liquid Gas LO2 LN2 LAr LNG And LCO2 Tank Container For Sale

产品信息蓝色

9bb64935faf6b6165f231db91360508

ISO Tank container is a kind of steel pressure vessel installed in the fastening external frame. Most of the tanks are made of 316 stainless steel and equipped with steam or electric heating device,

inert gas protection device, pressure relief device and other optional equipment for fluid transportation and handling. European, American and Japanese laws stipulate that some goods must be

transported in tank containers. As a means of Safety transportation, Tank Container has natural advantages and become more and more popular in the world.

DESIGN CODES AND REGULATIONS	ASME VII DIV 1--2019Ed，T75 UN PORTABLE TANK, IMDG, TIR, UIC, CSC, TC,CFR49, RID/ADR,ISO 1496-3, FRA,CGA 341
CONTENTS	LOX LIN LAr LNG LC2H4 LC2H6
TARE(kg)	7710
MPGM	36000
STACKING LOAD	192000
MAX. FILLING RATE	0.95
TYPE OF INSULATIONT	High vocwum multilayer
STATIC EVAPORATION RATE\|	LIN <0.34
SEAL-OFF VACUUM DEGREE	≤0.08
LQUID LEVEL GAUCE(m H20)	0~3 (PN40)
PRESSURE GAUGE	0~4.0 Grade 1.6
SET PRSSURE 0F SAFETY VAVNE	1.6
MATERIAL OF FRAME	Q355D(GB/T1591)
OUTER SIZE (LxWxH)	6058x2438x2591
T75_ UN Portable TANK	INNER VESSEL	OUTER JACKET
「M.A.W.P	1.60/-0.04	-0.103
MDMT	-196	-40
DESIGN TNPERATUIRE MAX./MIN	-196/+50	-40/+50
ASME CERTIFICATION MARK STAMPING	YES	Not required
NB REGISTRATION	Not required	Not required
FULL CAPACITY	21	5.31(夹层) Interspace
PNEUMATIC TEST	1.76(4~48℃)(ASME)	Vacuum test( 真空测试)
	2.21(4~48℃) (MDG)
MATERIAL OF SHEL	SA-240M 304	Q345R
IMPACT TESTING	Not required	Not required
MATERIAL OF FORGING	SA-182M F304	16MnDM
CORROSION ALLOWANCE	0	0
JOINT EFFICIENCY	1	0.85
NOMNAL HICINESSS 0F SHEL	10	4

工厂蓝色

稿定设计导出-20211227-135422

公司介绍绿色_副本

Advantage of Tank Container

Low Cost

Saving land and sea freight, lower cost when long-term use.

 Convenient and fast

Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway, sea transportation.

Safety and Eco-Friendly

No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport chemicals and food
internationally recognized.
