JSX511430SWT
14200*2500*3980 mm
30 Tons

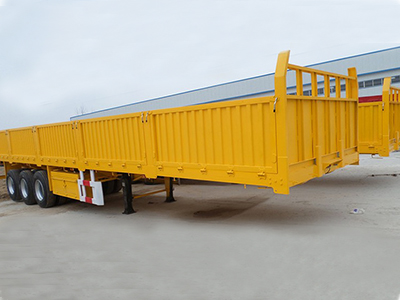

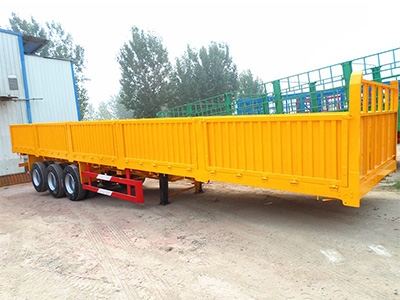

[New 3 Axle 30 Tons Sidewall Tractor Semi Trailer in China]
1. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods,widely used for variety of the cargoes.
2. The whole vehicle adopts the advanced computer-aided design software to optimize the design,make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
3. Axles,tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
4. The product quality and reliable, widely used, has become the vehicle of choice for long-distance freight vehicles.
5. The quality of this product is reliable,extensive usage,has become the preferred models of middle&long-distance freight vehicles.
| PARAMETER | Dimension(mm) | L*W*H: 14200X2500X3980(MM) |
| King pin setting(mm) | 1200mm | |
| Kin Pin Plate Height (mm) | 1250mm | |
| Axle space(mm) | 7800mm+1310mm+1310mm | |
| Tare weight(kg) | 10500KGS | |
| Payload (kg) | 29500KGS | |
| G.V.W.R. | 40000KGS | |
| FABRIC | Main beam(mm) | 500/14/6/16 |
| Side rail | 180mm hot roller “C” type channel. | |
| Cross member | Fabricable C channel + Ω channel | |
| Front wall | 2400mm | |
| Side wall | 800mm high | |
| Fence | 500mm high,two layer | |
| Floor | 3mm checker plate | |
| Lock | 8 retractable locks | |
| Hook and hole | 13 cast steel hooks on each side of the platform | |
| Paint | army green | |
| OEM | Landing gear | JOST D200 |
| Kingpin | 2” Bolted type ,JOST | |
| Brake system | 30/30 type on each axle, WABCO brake valve | |
| Abs | No | |
| Suspension | CIMC mechanical suspension with 9 leaf spring | |
| Axle | FUWA square axle, 13 ton capacity/set | |
| Tire | Double coin, type: 12.00R20-18PR, RLB, | |
| Rim | 8.5V-20 | |
| Tool box | 1 | |
| Spare tire carrier | 2 |
1. With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable
customers.
2. Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.),
Middle East, South Asia and South-America market etc.
3. Two Years Guarantee for all the the beam of trailers, timely shipment;
4. Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
5. Your order could be a priority in our company whenever your order is small/medium size order or your low price.
6. We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".
1.For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2.You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3.You will get the out-standing quality assurance.
1. Whenever reliability, safety and economic is needed, there is a a solution.
2. With a full range of trailer spare parts support, spare parts supplying within 3 working days.
3. Seriously according to the customer's requirements, and flexible cooperating mode.
4. Offer the professional trailer drawing after confirming the order.
5. Excellent after-sales service & product maintenance.
