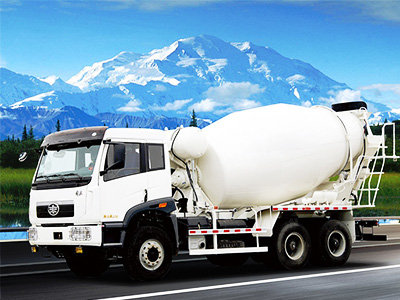

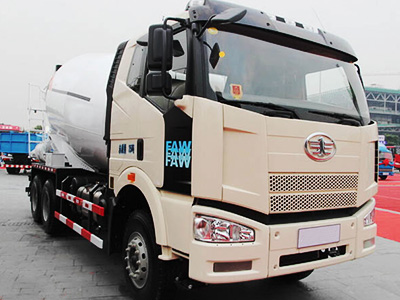

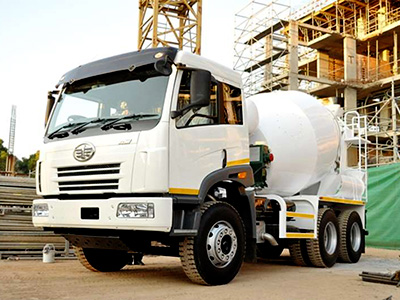

JSX706412FAW
JSX
9950*2490*3950 mm
[Well-designed to meet the individual needs]
1.Fully integrated into the customer personalized demand and user-friendly design concept,which is the high-end products of the concrete mixing transportation equipment.
2.Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lower unloading residual rate,large volume,high efficiency.
3.Mixing body and leaf are all made from special fine grain wear plate,Integral forging raceway,which all can guarantee longer&enough life-span.
4.Mixing leaf has the excellent mixing function to make the finished concrete more uniformly,and to maintain the quality of the concrete;High strength,toughness beam, minimizing vibration.
5.The fourth axle adpoting American patented technical air suspension,can freely lift and down the lifting axle according to the weight and road environment.
| Parameters of Cement Mixer | |||
| Vehicle Name | FAW Concrete Mixer Truck | Vehicle Code | JSX706412FAW |
| Engine Type | FAW-336HP-State5 | Displacement | 11596 ml |
| Dimension | 9950*2490*3950 mm | Discharge Standard | State 5 |
| Total Mass | 25000 kg | Spring Films | 13/14/12 |
| Curb Wight | 11815 kg | Max Gross Mass | 12990 kg |
| Axle Load | 6500/6500/18000 kg | Wheel Base | 3975+1350 mm |
| Axle Number | 3 Axle (6X4) | Maximum Speed | 83 km/h |
| Gearbox | Fast 9 | Front and Rear Axle | F-9t / R-16t*2 |
| Tire Number | 10+1 | Tyre Size | 12.00R20 |
| Front Track | 1986/1940 mm | Rear Track | 1860/1860 mm |
| Parameters of Mixing Drum | |||
| Material of Mixing Drum | Alloy steel | Material of Drum surface | Mn-steel-16 , Alloy steel-6mm |
| Material of Mixing Blade | Baosteel-520 , Alloy steel-5mm | Material of Mixing Head | Alloy steel-8mm |
| Reduction Box | Germany-ZF / Bonfiglioli / PMP | Hydraulic System | Rexroth / Eaton / US Sauer / PMP |
| Water System | 300L(Pneumatic water supply) | Cooling System | OBCC |
| Feeding Speed | ≥3 m³/min | Discharge Speed | ≥2 m³/min |
| Discharge Residual Rate | ≤0.5% | Operating Mode | Both sides and the cab |
| Scope of Discharge | Adjustable | Safety Device | Add the leakage receiving device |
[ TIP:The parameters are just common configuration. If you have special requirements, we can provide you with customized services.]
Chassis
There are a lot of chassis in the mixer, such as HOWO, CAMC, FOTON, Dongfeng, etc.The small square mixer adopts the driving mode of 4X2, which is the driving mode of the larger mixing vehicle, 6X4 and 8X4.
Auxiliary frame
It is mainly composed of main beam, front part and back part, which plays the role of connecting the chassis girder and supporting the mixing drum.
Cleaning system
It mainly consists of water tank, air pressure gauge, valve and pipeline.The main function is to clean the mixing drum, and the cleaning system also has a cooling effect on the hydraulic system.
Hydraulic system
he engine driven by the extractor is converted into hydraulic energy, and then the motor output is mechanical energy, and the reducer drives the mixing drum to rotate.
Mixing drum
The most important part of the vehicle, most of the mixing drum USES a light tone.The mixing drum is loaded with concrete containers. The inner wall of the cylinder is filled with spiral blades, and the concrete is inseparable from the blade in the process of stirring and moving in and out.
Row by Row
It is located at the rear of the car, which is composed of feeding hopper, hopper, main discharge chute, auxiliary discharge chute and bracket locking rod.
About the details:
In order to produce a high quality product, the details are very important.The important parts we use, such as engines, hydraulic pumps and speed reducers, are well-known brands in China and even the world.
About the factory:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As youcan see in the picture, the production process is very elaborate.Above all, our workers are very serious andefficient.All I have said above is believable and guaranteed.
