JSX124060SST
13000*2500*1550*1500 mm
50-60 Tons
1.Specially used for the transportation of various containers.Can be used over and over again, with sufficient strength.
2.Use container transhipment cargo, which can be shipped directly to the warehouse of the consignor, to be delivered to the warehouse of the consignee, and to replace the vehicle and ship in the middle of the journey.There is no need to remove the goods from the box.
3.It can be quickly unloaded and can be changed from one transportation to another.
4.Easy to fill and unload the goods and meet the personalized needs of customers.According to customer needs customization, the quality is stable, the performance is reliable.
| Trailer Model | JSX124060SST |
| Overall Dimension(Lx W x H) | 13000*2500*1550*1500 mm |
| Loading Weight( KG) | 40-60 T |
| Axle | 4 Axle |
| Wheelbase(mm) | 6300+1310+1310+1310 mm |
| Suspension system | Common Mechanical suspension |
| Steel Spring | 12/16/12 leaf spring suspension |
| The material of Main beam | Beam height 500 mm |
| Upper plate 14mm | |
| Down plate 16mm | |
| Middle plate 8mm | |
| Tire Type | 12R22.5 |
| Traction Pin | 50mm or 90mm |
| Spare Tire Carrier | 2 picecs |
| Tool Box | 1 Standard |
| Landing Gear | Standard 28ton |
| Brake system | Dual Line braking system / ABS. |
| Brake air chamber | Six big chamber |
| Electrical system | Voltage: 24v Receptacle: 7 ways (7 wire harness) |
| Side Guard | According to customer's requirement |
| Painting | Color by customer's requirement |
[TIP: The above parameters are just general configuration.If you have specific requirements, such as flatbed/skeleton trailer style, total load, axle structure, and even important parts, we can customize it for you.]

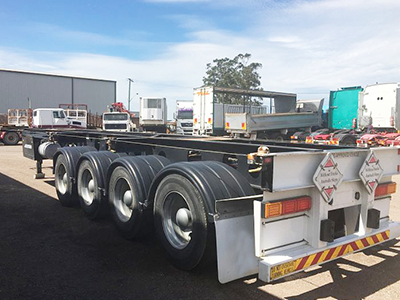

1.The Skeleton semi-trailer frame is welded by longitudinal beam, transverse beam, front-end beam and rear-end beam.
2.The longitudinal beam is welded with a high quality steel plate and submerged arc welding.The transverse beam is pressed into groove by high quality steel plate.front-end beam and rear-end beam are welded rectangular sections.
3.The container lock device is equipped with an integrated beam, which can carry the carrying capacity.
4.It can be loaded with standard containers of 40 feet and 20 feet.In addition, it can be customized according to your requirements.
5.The supporting device has single action and linkage type.It is mainly composed of supporting disc, screw drive mechanism, reducer box and control handle.
6.The suspension has uniaxial suspension, biaxial suspension and triaxial suspension.And equipped with a spare tire, on both sides of the truck.
About the details for Container Semi Trailer:
In order to produce a high quality product, the details are very important.The important parts we use, such as,car axle, brake system, shock absorber system, even steel plate.are well-known brands in China and even the world.
About the packing for Container Semi Trailer:
We'll try to help you save transportation costs.We have been in contact with many customers, so we have a very good ways for product transportation.
