JSX323640APT
JSX
87163900

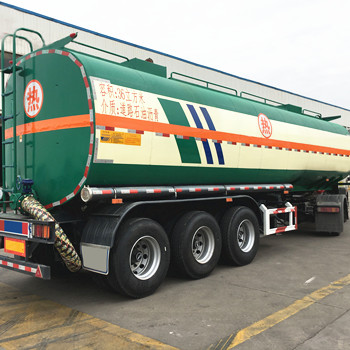

1.This series asphalt transportation tank semi trailer is tank-style designed, it is suitable for the transportation of liquid products, and asphalt transportation with heat preservation systems, which can be manual or electrical.
2.Considering different countries have different road safety rules, defferent regulations, different road conditions. We’ll manufacture the tank semi trailer according to your sepecial situation.
Wheel Base | 1310 (mm) |
Tyre | 12Pcs,12R22.5 |
Axle | 3Pcs, 13Tons |
Landing Gear | 28 ton capacity Fuwa with static capacity of 80T |
Suspension | Heavy duty mechanic suspension with 10 pcs leaf spring |
King Pin | 2' and 3.5' interchangable traction pin |
Front/Rear Overhang | 1900 mm |
Material of the Main Beam | Automatic submerged arc welded |
Main beams Q345B/ST52-3, through cross beams Q235 | |
Body material Q235B manganese plates, automatic submerged arc welded | |
Brake System | Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
Colour | As the buyers' request |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
Tanker side thickness | 5mm carbon steel |
Net Weight | 12 T |
Electrical System | 24V, 7core socket, lights according to European standards. |
Heat Preservation System | Electrical or Diesel |
Kindly Note: Other Dimension & rated capacity will be available, pls contact us if any interests. |
Super welding technology, Key position is full weld instead of spot weld
Tanker end and tanker body make sure the safety in transport
Polyurethane painting to resist corrode and make service life longer
Qualified to CCC & ISO certificate standard
Customized to the most suitable tanker according to customers' demand
Wax: Do wax spray to against tank trailer body suffer seawater corrosion during shipping
Package: Stable fixing with steel wire to protect tank trailer during shipping
Shipping by: Flat Rack or bulk cargo or RO-RO.
