JSXT220042101
Jushixin
13600*2780*2460(mm)
30T

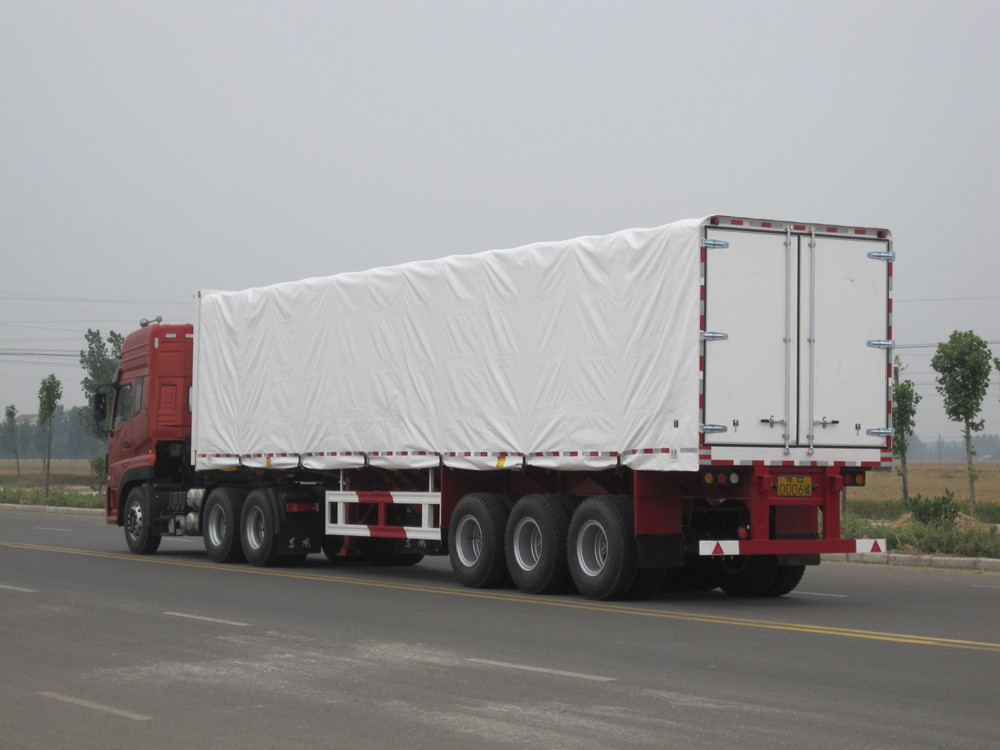

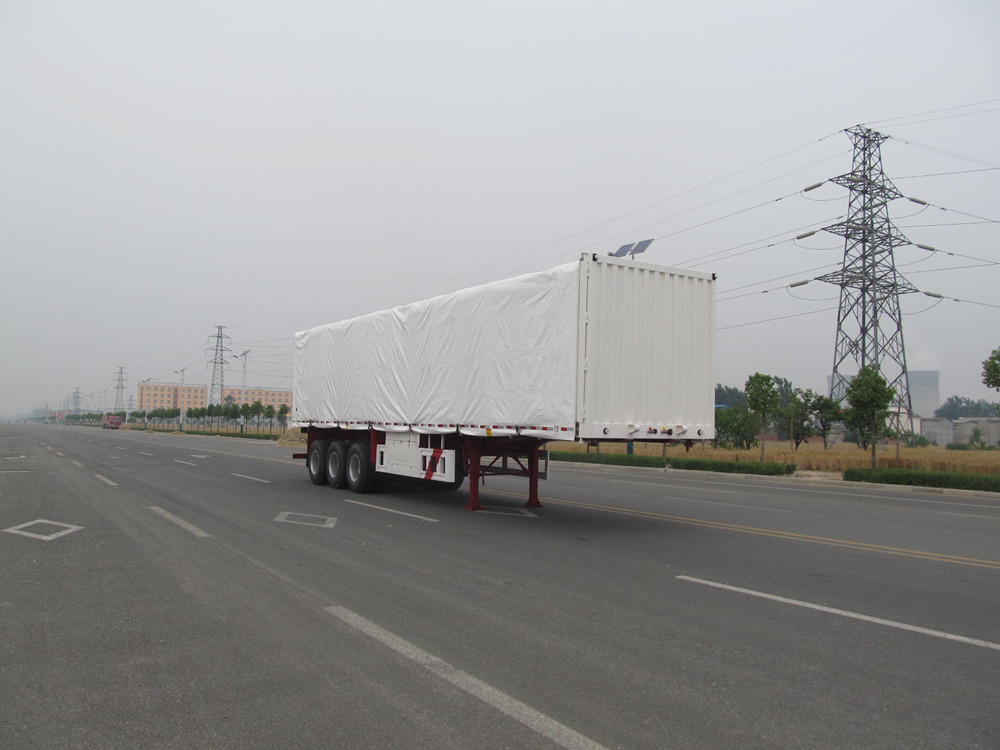

3 Axle Curtain Van Semi trailer Cargo Transport Box Body Truck Trailer
| Weight | |
Payload approx | 30T |
Chassis | |
Main beam | Material: Q345B fabricated carbon steel; 480mmx140mm I-Beams with holes ; Upper plate: 14mm；Bottom plate: 16mm Middle plate: 8mm |
Side beam | 16# channel steel |
Cross beam | 8# channel steel |
King pin | 50/90# |
Running system | |
Axle | Brand: Normal axle |
Tyre | |
Rim | 12pcs, |
Landing gear | 28T total Lifting capacity and 80T static capacity; double speed; large pad feet; 2 speed manually-operated landing gear c/w crank handle |
Suspension | Mechanical system Qty: 10+10+10+10 |
Brake system | Type: Dual line braking system c/w quick release coupling Brake air chamber: 8 in total, T30/30*4 + T30*4 |
Accessories | |
Electric system | 24V LED light; waterproof wire; 7 ways (7 wire harness); |
Spare rim | 1 pc |
Tool box | 1 unit; |
Spare tire carrier | 1 unit |
Protectors | Mudguard; |
sand blaster; Color: optional | |
1. Semi trailer suitable for the transportation of agricultural and sideline products and other light foam goods, such as animals, vegetables, fruits, etc;
2. Semi trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance;
3. Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;
4. Semi trailer has a simple structure, convenient disassembly and maintenance, and reduced maintenance costs;
5. Customized design to meet different customer needs.
1. We are a professional semi trailer supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.
2. Our semi trailer production technology has a number of patents, and our production technology ranks among the best in China. We pay attention to every detail of semi trailer, we pursue to make the customer have a good experience.
Our Certificate
High quality is our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailer can transport by Bulk Cargo Ship/ro-ro /Container, etc.
Quick and safety packing and shipping for semi trailer.
We can offer you good service for pre-sale and after-sales
1.24 hours online service
2.Quick and safety packing and shipping for products
3.Life-long free technical service
4.Three guarantees free during warranty period
FAQ
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
