JSX9423FT10
13000*2500*3985mm
40Tons

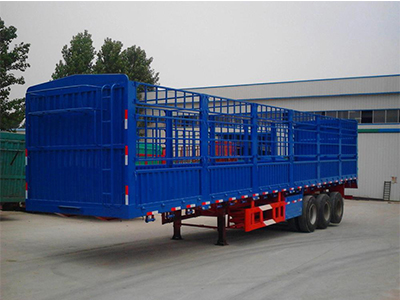

1.The body shape and fence structure design combines with users’ cargo series. Reasonable design reduces the weight of vehicles, which can meet more cargo carrying. Simple and applicable structure, convenient disassemble ability can save investment cost and create more profits.
2.The space frame structure is welded by the longitudinal beam and integral penetration beam. It can balance the strength, rigidity, toughness. Strong bearing capacity without permanent deformation.
3.Series stake semi-truck all use integral penetration beam. Longitudinal beam adopts flat or swan-neck style.
4.Adopted new suspension system leads strong strength and high impacting resistance. Each axle has a balanced load. Angle of system tie-rod is designed reasonably, making less friction and slip distance between tires and ground during the process of frequently running.
Overall Dimension(Lx W x H)(mm) | 13000*2500*3985 |
Function | transport packed cargo, like juice packs, rice etc. |
Tare Weight(KG) | 6500 |
Loading Weight( KG) | 40000 |
Axle Brand | Standard 13TON Axle |
Axle Number | Three |
Wheelbase(mm) | 6860+1310+1310 |
Suspension system | Standard Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
Tire Type and quantity | 11R22.5 12PR 8units |
Traction Pin | 90mm |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | Chinese standard brand 28ton external |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | 4 big double air chamber |
1.For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2.You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3.You will get the out-standing quality assurance.
1.With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2.An professional team which is experienced with international market and has strong technical capability to customized cost effective
because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.
3.Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.),
Middle East, South Asia and South-America market etc..
4.Two Years Guarantee for all the the beam of trailers, timely shipment;
5.Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6.Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7.We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".
1.Whenever reliability, safety and economic is needed, there is a a solution.
2.With a full range of trailer spare parts support, spare parts supplying within 3 working days.
3.Seriously according to the customer's requirements, and flexible cooperating mode.
4.Offer the professional trailer drawing after confirming the order.
5.Excellent after-sales service & product maintenance.
