JSX18520FTC
6058 * 2438 *2591/mm
420-590 Kg

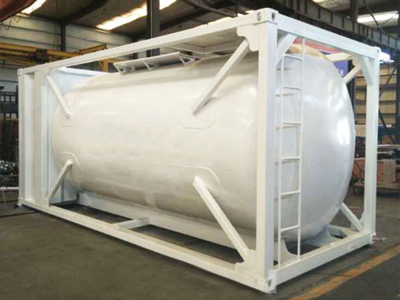

| Dimension of the 18.5CBM 20FT Frame Container Tank | ||||||
| Volume of Tank | 18.5 CBM | |||||
| Filling Capacity | 9800-12,000 kg | |||||
| Tanker Weight | 7300 kg | |||||
| Nominal Diameter | 2200 mm | |||||
| Thickness of Shell | 14 mm | |||||
| External Dimensions (mm) (length x width x height) | 6058 x 2438 x 2591 mm | |||||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |||||
| Material of Frame Material/Frame to Shell/Corner castings | Q235B high tensile strength steel | |||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||||
| Design Pressure | 1.8 MPa (18Bar) | |||||
| Working Temperature | -10~55ºC | |||||
| Corrosion Allowance | 1 mm | |||||
| Water Pressure Test | 2.7 Mpa | |||||
| Gas-Tightness Test | 1.8 Mpa | |||||
| Medium Density | 420-590 kg/ cbm | |||||
| IMO class | 2 | |||||
| Container Type | GET1CC-GYQ | |||||
| Sun Shade | with Sun Shade to protect from sun | |||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||||
| Container Meet: UN T50, 1CC Container. | ||||||
Design proposal for the 20feet ISO tank container:
---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mm baffle;
---Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the bottom , DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;
---Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube, two 4kg fire extinguishers.
Optional parts for the tanker container:
Volume: 20 cube meters to 52 cube meters
Material: Carbon steel/aluminum/stainless steel material
Medidum:HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClO etc. Chemical Liquid.
BRIEF INTRODUCTION TO OUR FACTORY:
He Nan Ju Shi Xin, a special vehicle manufacturing corporation
with the professional experience more than 30 years, certified by the Chinese
government manufacture,Majored in semi trailer, special vehicle manufacturing, our
products are mainly exported to Philippine, Ethiopia, Thailand, Myanmar, Vietnam,Congo, Kenya, Tanzania, etc...More than 20 countries.
FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
>>> Small Order Can Be Accepted;
>>>Any Color & Logo Available;
>>>The Product Dimension + Specifications Can Be Designed As Your Needs.
Buying Guides
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
