JSX313540CMT
JSX
87163900
1. Bulk Cement Power Tank Trailer, alias cement tanker. Used to transport bulk cement,coal, ash or other powder. Mainly use for cement plant, cement warehouses and large construction sites, It can save a lot of packaging and loading and unloading work.
2. We can design separately according to customers’ different requirements, Just tell us what medium you transport, we will give you corresponding design models and meet the personalized needs of customers.
1.Detailed Specification of Tri-Axle 35CBM Bulk Cement Power Tank Trailer:
| Main Dimensions: | |
| Overall Length | 11800mm |
| Overall Height | 3800mm |
| Curb Weight | 12400kgs |
| Total Volume | 35CBM |
| Pay Load | 40-45tons |
| Tanker Body: | |
| Inner Fluidized Bed | Air bed |
| Tanker Body Material | Q235A/ 6mm steel sheet |
| End plate | Q235A/ 6mm, ball shape |
| Rated work Pressure | 0.2MPa |
| Compartment | Single |
| Shape | V type |
| Chassis: | |
| Axles | 3 axles, FUWA Brand 13 ton |
| Suspension | Mechanical suspension with 8-pcs leaf spring |
| Braking System | WABCO Emergency Relay Valve; T30/30+T30 air chamber |
| Rim & Tire | 11.00R22.5 tubeless tire with one spare tire with 8.25R22.5 wheel rim, |
| 13 pieces | |
| Key Accessories: | |
| Air compressor | 45KW, 0.2Mpa, 1000r/Min |
| Engine | Diesel engine |
| Manhole Cover | 500mm manhole cover, 3 sets |
| Air-charging system | 2" main hole, 2"check valve, 1.5" safe valve, 0.4Mpa gauge |
| Discharge Pipe | 4" seamless steel tube |
| Quadratic blow | 1" diameter check valve |
| Discharge valve | 4"disc valve |
| Outlet discharging pipe | 4" rubber hose, 6m |

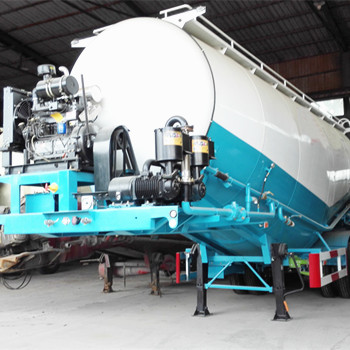

2.Detailed Photos of Tri-Axle 35CBM Bulk Cement Power Tank Trailer:
1. Best Raw Material:
Good performance support strong structure for longer service life
2. Light Weight:
High strength steel make lighter tare weight, reduce fuel consumption
3. Fast Unloading:
Quality engine support higher unloading rate, increase round trip rate.
4. High Loading Rate:
Unique design make loading rate >98%, load more for per trip
5. Low Residual Rate:
Reasonable angle design, unloading faster and residual rate<0.3%, increase economy for one trip.
6. All Jushixin tank semi trailers adopts famous brand, such as:
Axle:
FUWA or BPW brand axle support trailer durable
Chassis:
China best Q345B-T700 support strong trailer skeleton
Tire:
Better quality tire support trailer running safety and smoothly
King Pin:
JOST detachable type support durable, fast and easy replace
Emergency Valve:
Fast response, support safety and protect tire use longer time.
Wax: Do wax spray to against tank trailer body suffer seawater corrosion during shipping
Package: Stable fixing with steel wire to protect tank trailer during shipping
Shipping by: Flat Rack or bulk cargo or RO-RO.
