***This series tank semi trailers are suitable for the transportation 1,1,1,2-Tetrafluoroethane,LNG/LO2/LCO2/LIN/LOX/LAR/Liquid Ammonia/Liquid Argon,Etc. Gas.
*** The volume is under 50 cube meters, we can manufacture it according to your needs.

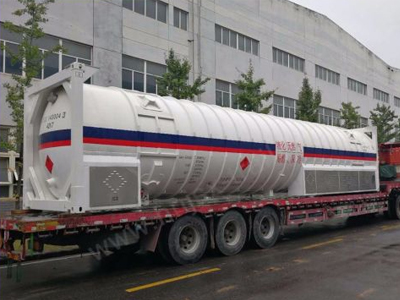

|imension of the 40FT 40.44CBM LNG Tank Container with BV&T75|
|Description and Specification of Commodity|
|Codes and regulations for tank container||TSG R0005-2011|
|Guidelines for tank container||T75|
|Container Type for tank container||1AA|
|Rated weight for tank container||32723kgs|
|Maximum Allowed Loading Weight for tank container||14700kgs|
|Tare weight for tank container||18023kgs|
|Allowed stacking weight for tank container||192000kgs|
|Manufacturing license level for tank container||Inside tank||C3|
|Overall Size(Frame)/L*W*H/mm for this storage tank||12192*2438*2591|
|Media for this storage tank||Inside tank||LNG|
|Media Characteristics for this storage tank||Inside tank||explosive|
|Paint for this storage tank||Frame||30µm +40µm +50µm|
|Shell||30µm +40µm +50µm|
|Total Volume(L) for this storage tank||40440|
|Effective volume(L) for this storage tank||36400|
|Material density(kg/m3) for this storage tank||Inside tank||426|
|Natural boost rate for this storage tank||Inside tank||<=13|
|Main hazard category for this storage tank||2.1|
|Design service life for this storage tank||15 years|
|Mode of transportation for this storage tank||Road,Sea or Railway|
|Adiabatic form for this storage tank||High vacuum multilayer insulation|
The Valves of this tank container are all imported from the U.K.
FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
>>> Small Order Can Be Accepted;
>>>Any Color & Logo Available;
>>>The Product Dimension + Specifications Can Be Designed As Your Needs.
Buying Guides for this ISO Storage Tank Container
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
