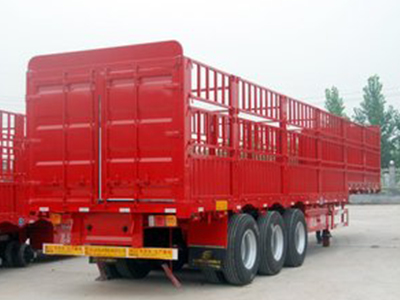

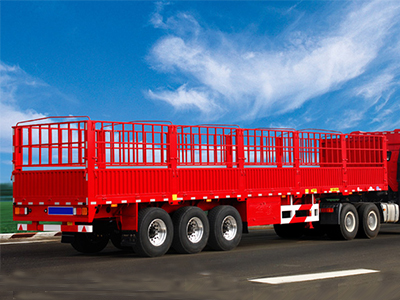

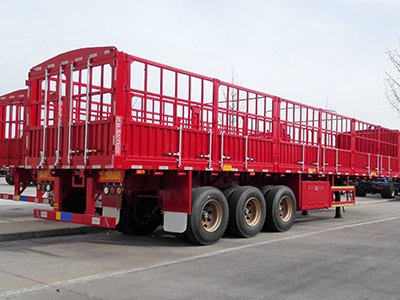

Best Price Steel Material China 3 Axle Stake Fence Truck Semi Trailer

Axle: 3
Loading Weight: 55 Tons
Tare Weight : 5800 KG
Overall Dimension:13000*2500*600 mm

Quantity:
  • JSX521355SST
  • 13000*2500*600 mm
  • 55Tons

Best Price Steel Material China 3 Axle Stake Fence Truck Semi Trailer

Product-Specification

DIMENSIONS
Tare weight 5800 kg
Payload 55000kg
Overall Dimension(L*W*H) 13000*2500*600mm
SPECIFICATION
BODY & EQUIPMENT Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 8 mm,;Middle Flange 10 mm;bottom flange 2.0 mm,Longitudinal beam height 500mm
Axle Fuwa 2*13ton +1*16ton
Suspension Mechanical suspension .thicken
Leaf spring 10 pcs
Tire 12R22.5  12pcs
Wheel rim Fuwa 9.0 12 PCS
Kingpin 90#  bolt-in king pin
Landing gear JOSTC200 two-speed,manual operating ,heavy duty landing gear 28t
spare wheel carrier 2 pcs
Vehicular applications Equipment  or machine transport
Drawing Including
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Paiting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box

Product-Parts

Product-Parts

Product-Features

1.The body shape and fence structure design combines with users’ cargo series. Reasonable design reduces the weight of vehicles, which can meet more cargo carrying. Simple and applicable structure, convenient disassemble ability can save investment cost and create more profits.

2.The space frame structure is welded by the longitudinal beam and integral penetration beam. It can balance the strength, rigidity, toughness. Strong bearing capacity without permanent deformation.

3.Series stake semi-truck all use integral penetration beam. Longitudinal beam adopts flat or swan-neck style.

4.Adopted new suspension system leads strong strength and high impacting resistance. Each axle has a balanced load. Angle of system tie-rod is designed reasonably, making less friction and slip distance between tires and ground during the process of frequently running.

Product-Details

X-stake trailer2

Quality Control

1.For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.

2.You wil get the inspection  certificate according to customer demand for every trailer which given by an independent third party certification company.
3.You will get the out-standing quality assurance.

Factory-Show

C-low bed trailer7

Our Advantage

1.With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable

customers.
2.An professional team which is experienced with international market and has strong technical capability to customized cost effective

because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.
3.Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.),

Middle East, South Asia and South-America market etc..
4.Two Years Guarantee for all the the beam of trailers, timely shipment;
5.Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6.Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7.We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".

Packing-&-Shipping

Stake Shipping

Our-Service

1.Whenever reliability, safety and economic is needed, there is a a solution.
2.With a full range of trailer spare parts support, spare parts supplying within 3 working days.
3.Seriously according to the customer's requirements, and flexible cooperating mode.
4.Offer the professional trailer drawing after confirming the order.
5.Excellent after-sales service & product maintenance.
