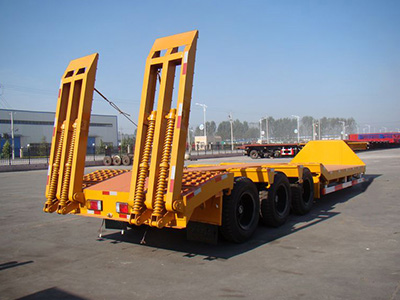

50 Ton 3 Axles High Quality Low Bed Truck Semi Trailer

Axle NO:3
Payload:50 Tons
Size :12450*2500*1580 mm
Wheel Base:7380+1320+1320 mm

Quantity:
  • JSX92410LB
  • 12450*2500*1580mm
  • JSX92410LB
  • 50Tons

Product-Specification

Low bed semi-trailer is usually used to transport heavy vehicles (e.g., tractors, buses and special vehicles, etc.), rail vehicles, mining machine forestry machinery, agricultural machinery, such as excavators, bulldozers, loaders, paver, cranes, etc.) and other heavy goods, its center of gravity is lower, the better the stability and safety, transport overheight cargo and overhead obstacles by the stronger the ability.

Model JSX92410LB
Axle NO 3 pcs
Wheel Base  7380+1320+1320 (mm)
Outside Dimension  12450X2500X1580   L×W×H (mm)
Tyre specifications 12.00R20 14PR Radio Tire
Tyre No 12 +1 Spare Tire
leaf-spring Pcs 12 pcs
Axle load 13 T
Suspension  Mechanic Heavy Duty Leaf Spring Suspension
Material & Thickness main beams Q345B/ST52-3
through cross beams Q235
Main beam Height: 500 mm
Upper flange : 14mm
Mid web : 8 mm
Lower flange: 16mm
Side Beam: 160 mm
Brake System Double pipe line air brake, front two axle is 30 air chamber, rear axle
is 30/30 air chamber.
Electrical System 24V, 7core socket, lights according to European standards.
Payload 50Tons
High Side Wall 800mm
Tool Box 1 box of standard tools
Spare tire carrier 1 set
Color and Logo Depends on the buyer's requirement.
The traction pin 3.5' or 2'
Pin Height According to the height of the tractor saddle.
Tare Weight 6.9 Tons
Floor 4mm diamond plate

Product-Details

P-low bed tralier6

 Product-Features
Sophisticated technologies-----The main parts are processed using the advanced equipments,the longitudinal beam is welded by the (imported from)Germany Automatic submerged arc welding machine;Using the assembly machine to realize the axletree assembly;Using the diastimeter to guarantee wheelbase;Using the electric tester to debug the whole vehicle eletric road;Using the shot blasting to processing the vehicle parts which can increase the adhesion of the paint.
Frame-----Using the assembly welded space frame structure which formed by welded-type longitudinal beam (made of 16Mn steel plate) and the whole Run-through cross beam;Reasonable structure,can evenly consider the strength,stiffness and toughness of the frame so that the trailer possess strong carrying capacity and without permanent deformation etc. Characteristic.
Axle-----Adopting the excellent axle produced by the professional manufactures,strong bearing,difficult to deformation;Meanwhile can opt famous ABS system from domestic and overseas reduce braking distance,effectively prevent the vehicle skidding/flicking etc. phenomenons caused by wheels locking when emergency braking,Improving vehicle safety.
Suspension-----Using a unique new suspension system,high strength, high impact resistance; each axle load balance,the system draw-bar angle design is reasonable,in the process of running frequent bumps,reduce slippage caused by instant friction between the tires and the ground, reduce tire wear,and meanwhile can adjust the draw-bar to adjust the wheelbase,effectively avoid eccentric wear and eating tire phenomenon; axis card is the whole casting, of which the lower axis card is the patented product.
Braking system-----Adopting the safe and reliable dual-circuit breathe brake,storage branch cylinder with braking function when parking,using the reliable relay valve.
A variety of gooseneck structure-----Low bearing surface low to meet the transport needs of different goods.
Product-Parts
未命名

5. Our Advantage
Our Advantage

1.With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2.An professional team which is experienced with international market and has strong technical capability to customized cost effective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.
3.Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.Two Years Guarantee for all the the beam of trailers, timely shipment;
5.Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6.Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7.We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company.
Shipping-&-Using

G-tralier7
Quality Control

1. For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2.You wil get the inspection  certificate according to customer demand for every trailer which givenby an independent third party certification company.
3. You will get the out-standing quality assurance.
