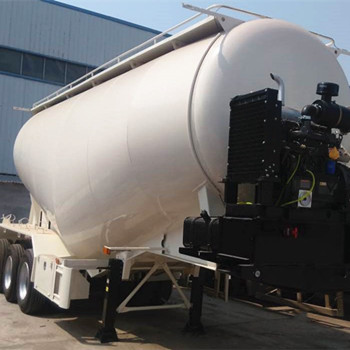

30CBM Powder Tanker Semi Trailer Bulk Cement Tanker

1.Function: Transport bulk cement, fly ash, lime powder,mineral powder etc.
2.Over Dimension: 10000*2500*3980mm(L*W*H)
3.Tank Volume: 30CBM
4.Loading Weight: 35Tons
5.Suspension System: Standard Mechanical Suspension

Quantity:
  • JSX313035CMT
  • JSX
  • 87163900

Product-Functions

Powder Tanker Semi Trailer Bulk Cement Tanker:

Jushixin tanker trailers are transportation and storage for cement and dry powder . Professional design, mature producing technology, and strong sense of responsibility, Make us become the popular manufacturer in tank semi trailer industry.

Product-Specification

Commodity:  30CBM Powder Tanker Semi Trailer Bulk Cement Tanker

Overall Dimension

10000*2500*3980mm(L*W*H)

Function

Transport bulk cement

Thickness(mm)

Tank body:Q235A carbon steel  4mm

End plate:Q235A  carbon steel  5mm

Loading Weight

35ton

Curb weight

9ton

Axle

3x13ton

Air compressor

0.2Mpa  10m3/min

Engine

Diesel engine:37KW model:4102.

Compartment

1 inner fluidized bed:Air bag

Manhole cover

500mm manhole cover.

Discharge valve

4disc valve

Discharge pipe

4seamless steel tube

Suspension system

Standard Mechanical suspension

Bottom valve quantity

1 unit

Steel Spring

Leaf spring suspension 90(W)mm*13(Thickness)mm*10Layer

Cat walk

With (Common model or special design)

Tire

12R22.5 * 12units

Traction Pin

90mm / 50mm

Spare Wheel Bracket

2 Pieces

Tool Box

1 Standard

Landing Gear

Double speed, external 28ton each leg

Brake system

Dual Line braking system

Brake air chamber

WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber

ABS

Optional

Electrical system

1.Voltage:24v   2.Receptacle:7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer's requirement

Painting

Complete Chassis sand blasting to clean rust,

1 coat of anticorrosive prime, 2 coats of final paint

Packing

Polish with wax before shipping

Product-Advantage

  • Creative design for your own special transportation program.

  • High tensile steel provides the strongest performance of semi trailer.

  • Automatic submerged arc welding and straightening machines make best main beam.

  • One coat blasting plus two coats polyester painting.

  • Standard and Brands of semi trailer parts can be chosen according to different requests.

  • Necessary accessories offered.

Product-Details

Cement Tank Trailer

Packing & Shipping

Wax: Do wax spray to against tank trailer body suffer seawater corrosion during shippin

Package: Stable fixing with steel wire to protect tank trailer during shipping

Shipping by: Flat Rack or bulk cargo or RO-RO.
