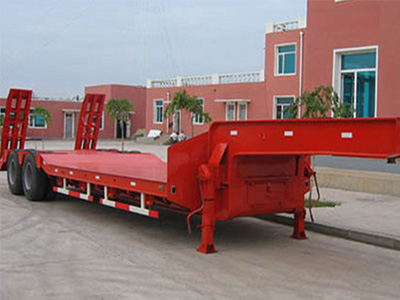

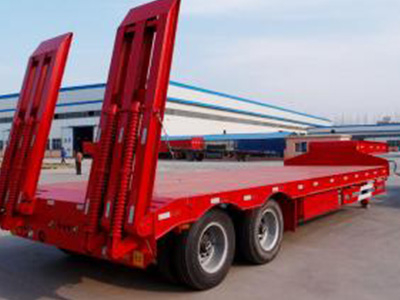

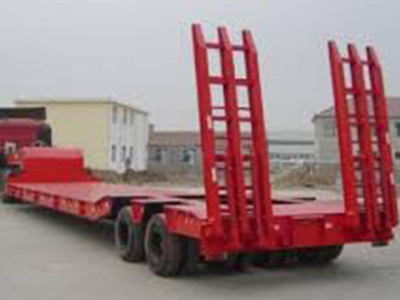

2 Axle 40 Ton Low Bed Truck Semi Trailer

Axle NO:2
Payload:40 Tons
Size :9950*3000*1750 mm
Wheel Base:6720+1310 mm

Quantity:
  • JSX92416LB
  • 9950×3000×1750 mm
  • 40 Tons

4

Product-Specification

Low bed semi-trailer is usually used to transport heavy vehicles (e.g., tractors, buses and special vehicles, etc.), rail vehicles, mining machine forestry machinery, agricultural machinery, such as excavators, bulldozers, loaders, paver, cranes, etc.) and other heavy goods, its center of gravity is lower, the better the stability and safety, transport overheight cargo and overhead obstacles by the stronger the ability.

Item

unit

parameter

Product Name

HLW9351TDP low bed semi trailer

Overall dimensions

mm

9950×3000×1750


Max  loading

kg

40000

Net weight

7300

Wheel base

mm

6720+1310

Front/rear overhang


-/1520

Approach/departure angle

°

-/19

Number of armor plate spring

-/8/8,-/10/10

axle

13T FW

Tire specification

8.25R20

Pin traction

90#

F/R wheel base

2180/2180

Outrigger

28T Single-action

Number of axles

2

Braking system

Brake made in China

Standard configuration:

28T single leg, four big gas chambers two small gas chambers, domestic relay valve, 90# traction pin, with ladder

Structural characteristics:

520-550mm high beam, upper and lower wing board 20mm, web 10mm, bottom 6mm pattern plate.

Product-Details

P-low bed tralier6

Product-Features
Sophisticated technologies-----The main parts are processed using the advanced equipments,the longitudinal beam is welded by the (imported from)Germany Automatic submerged arc welding machine;Using the assembly machine to realize the axletree assembly;Using the diastimeter to guarantee wheelbase;Using the electric tester to debug the whole vehicle eletric road;Using the shot blasting to processing the vehicle parts which can increase the adhesion of the paint.
Frame-----Using the assembly welded space frame structure which formed by welded-type longitudinal beam (made of 16Mn steel plate) and the whole Run-through cross beam;Reasonable structure,can evenly consider the strength,stiffness and toughness of the frame so that the trailer possess strong carrying capacity and without permanent deformation etc. Characteristic.
Axle-----Adopting the excellent axle produced by the professional manufactures,strong bearing,difficult to deformation;Meanwhile can opt famous ABS system from domestic and overseas reduce braking distance,effectively prevent the vehicle skidding/flicking etc. phenomenons caused by wheels locking when emergency braking,Improving vehicle safety.
Suspension-----Using a unique new suspension system,high strength, high impact resistance; each axle load balance,the system draw-bar angle design is reasonable,in the process of running frequent bumps,reduce slippage caused by instant friction between the tires and the ground, reduce tire wear,and meanwhile can adjust the draw-bar to adjust the wheelbase,effectively avoid eccentric wear and eating tire phenomenon; axis card is the whole casting, of which the lower axis card is the patented product.
Braking system-----Adopting the safe and reliable dual-circuit breathe brake,storage branch cylinder with braking function when parking,using the reliable relay valve.
A variety of gooseneck structure-----Low bearing surface low to meet the transport needs of different goods.

Customer-Visit

K-low bed tralier7


Our Advantage

1.With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2.An professional team which is experienced with international market and has strong technical capability to customized cost effective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.
3.Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya,Ghana ect.), Middle East, South Asia and South-America market etc..
4.Two Years Guarantee for all the the beam of trailers, timely shipment;
5.Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6.Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7.We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company.

Shipping-&-Using


G-tralier7
Quality Control
1.For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2.You wil get the inspection  certificate according to customer demand for every trailer which given by an independent third party certification company.
3.You will get the out-standing quality assurance.
